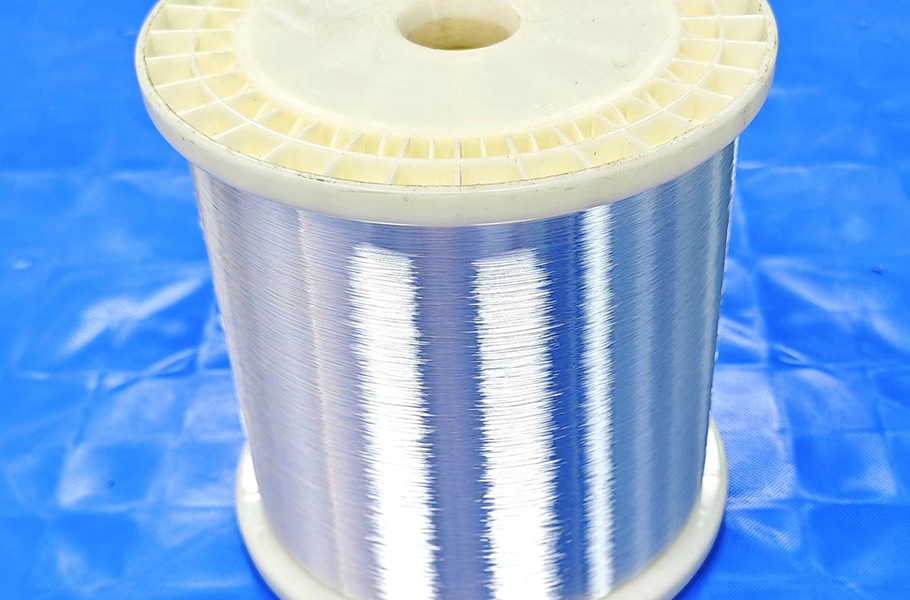

Silver plated copper alloy
| Enforce standards | Q/SY04—2018 |
| Model number | SCAS |
| Scope of application | This product is suitable for electronic equipment sockets with high temperature resistance up to +200℃ normal use of elastic wire |
| Diameter mm | Allowable deviation |
| 1.0-1.1 | ±0.040 |
| 1.11-1.8 | ±0.045 |
| 1.81-2.5 | ±0.050 |
| Note: The thickness of the silver plating layer is 3μm, and 5μm and above can be produced on special requirements | |
| Its mechanical strength ≥32kgf/mm² | |
| The supply status is semi-hard. Manufacturing weight: more than 50kg/ plate, according to user requirements in any weight line can be delivered | |
